Nolan Structural Products

Joist Repair Kit - 24" Strap

Joist Repair Kit - 24" Strap

Regular price $59.99 USD
Regular price Sale price $59.99 USD
Sale Sold out
Shipping calculated at checkout.

Kit Includes:

  • 1 24" A36 Carbon Steel Strap
  • 32 Simpson 1/4" Structural Screws
  • 1 3/8" Nut Driver
  • 1 3/16" Drill Bit
  • Instruction Sheet (also available by clicking here)

Click Here for the product design report provided by Nolan Engineering, PLLC.

Click Here to open chart to determine what size strap is needed.

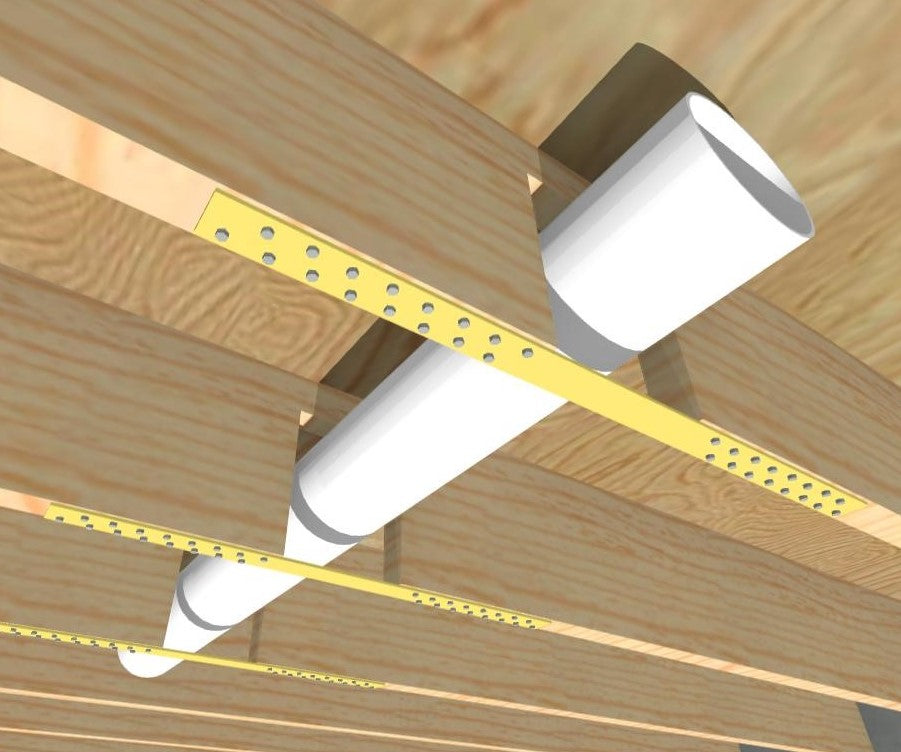

The Joist Repair Strap is designed to repair notched, drilled or damaged floor joists without needing to remove any plumbing/wiring which may go through the joist.  Our product provides an affordable, alternative solution to sistering the joist in order to restore the integrity of the joist and promote safety.  Each kit consists of a steel strap that is ideally screwed to the bottom of the floor joists.  If you don’t have access to the bottom of the joist, our product may still work.  Please contact us for more information.

The Joist Repair Kit is great for both homeowners, contractors, and DIYers as it includes everything needed to install. Once the strap is installed it will fully restore the strength of the floor joist. There is an engineered design report available by using the link above that can be provided to a Building Department, if required.  The Design Report is stamped by certified Engineers in multiple States and has been accepted by Building Inspectors across the United States and Canada.

The lag screws included are 1/4" by 1, 1/2" and will protrude out about an 1/8" from the steel.

**Please Note: This product will not work for every floor joist.  Please contact us directly if you have any concerns if this product is the correct solution for you.**


View full details

Customer Reviews

Based on 16 reviews
100%
(16)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jacob Melton
Found off YouTube

I was researching ways to reinforce a joist with notches removed. I found a YouTube video describing this product. As a mechanical engineer myself, I really appreciated the mathematical explanation of how this strap reinforces the joist. Installation was easy and now there's a bathtub installed on what was once a weakened joist with no issues!

D
Dan Higgins
joist repair

i have a 17 foot 2x12 joist that failed due to a large knot. this was far easier than sistering the joist.

T
Trey Kirk
Excellent Product

Works like a charm

D
Danny Sundell
Couldn't ask for better

Used the product to fix a joist and the bldg inspector was skeptical until I showed the video and the credentials of the engineer (designer). Saved me major bucks. Also appreciated that all tools needed were included and that it was shipped quickly. Usually I don't write reviews but this simple product was great.

R
Richard P. Holland
Very Pleased

I used to splice a joist where I couldn't raise into place in one piece. Being able to install from below made the job much easier for me. Good product and good support from the engineer.
