Tieback Anchor Kit for Retaining Wall Stabilization

Wall Stabilization Anchoring System for Retaining and Structural Support

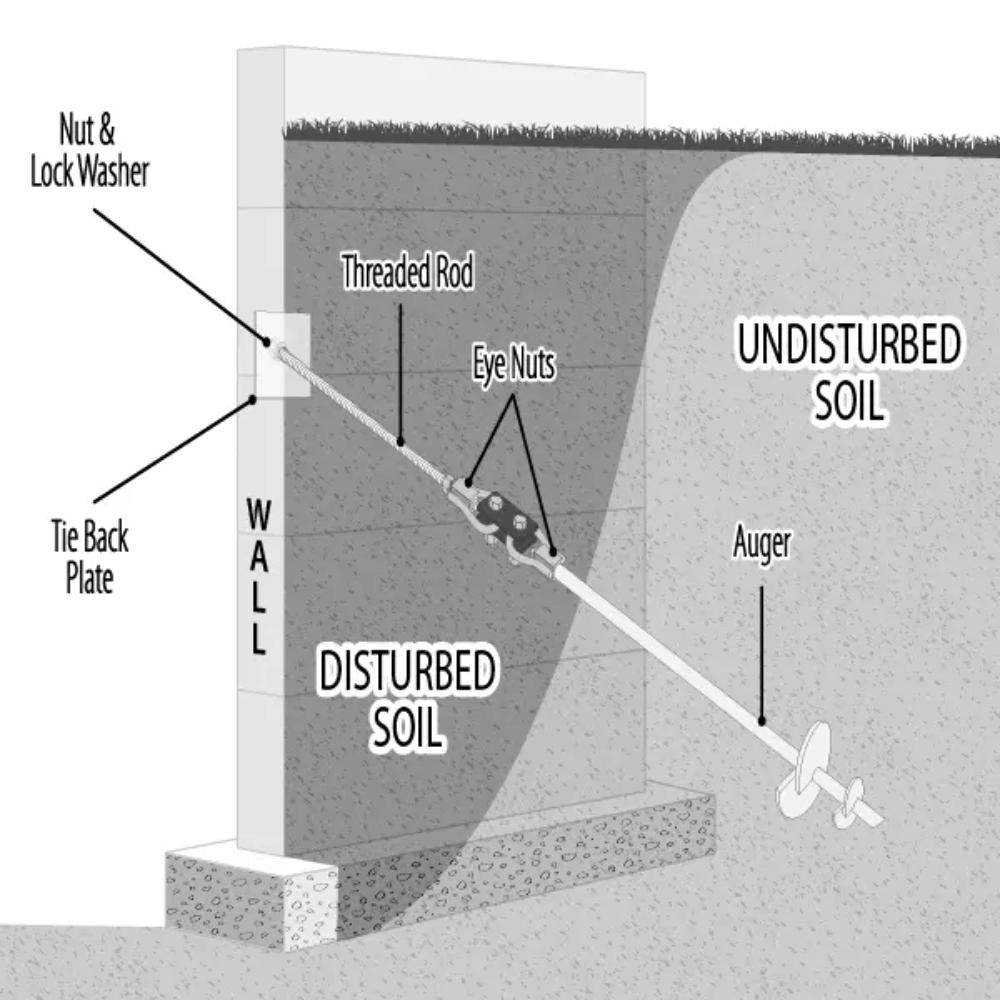

Tieback Anchor Kits are designed to provide anchoring support in applications where lateral forces must be transferred away from a wall or structure into stable surrounding soil. These systems are commonly used to help stabilize retaining walls and other structures requiring supplemental restraint.

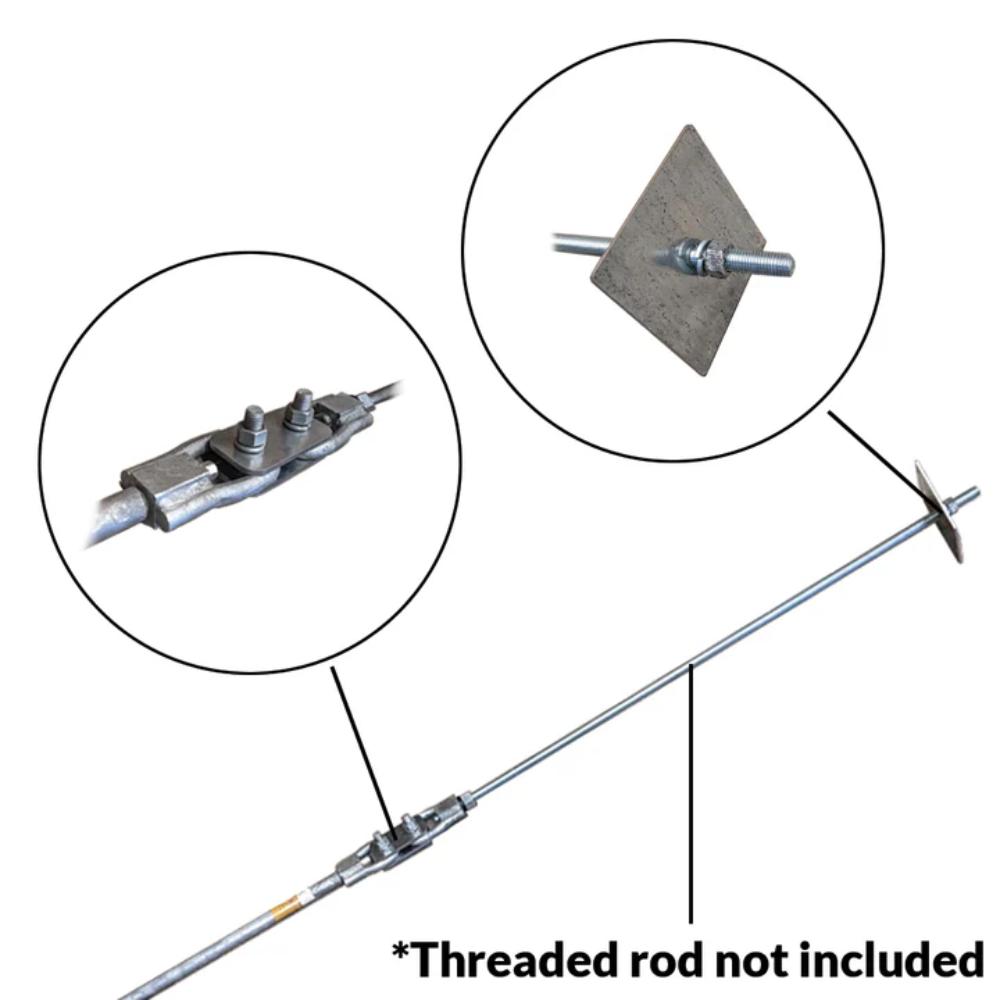

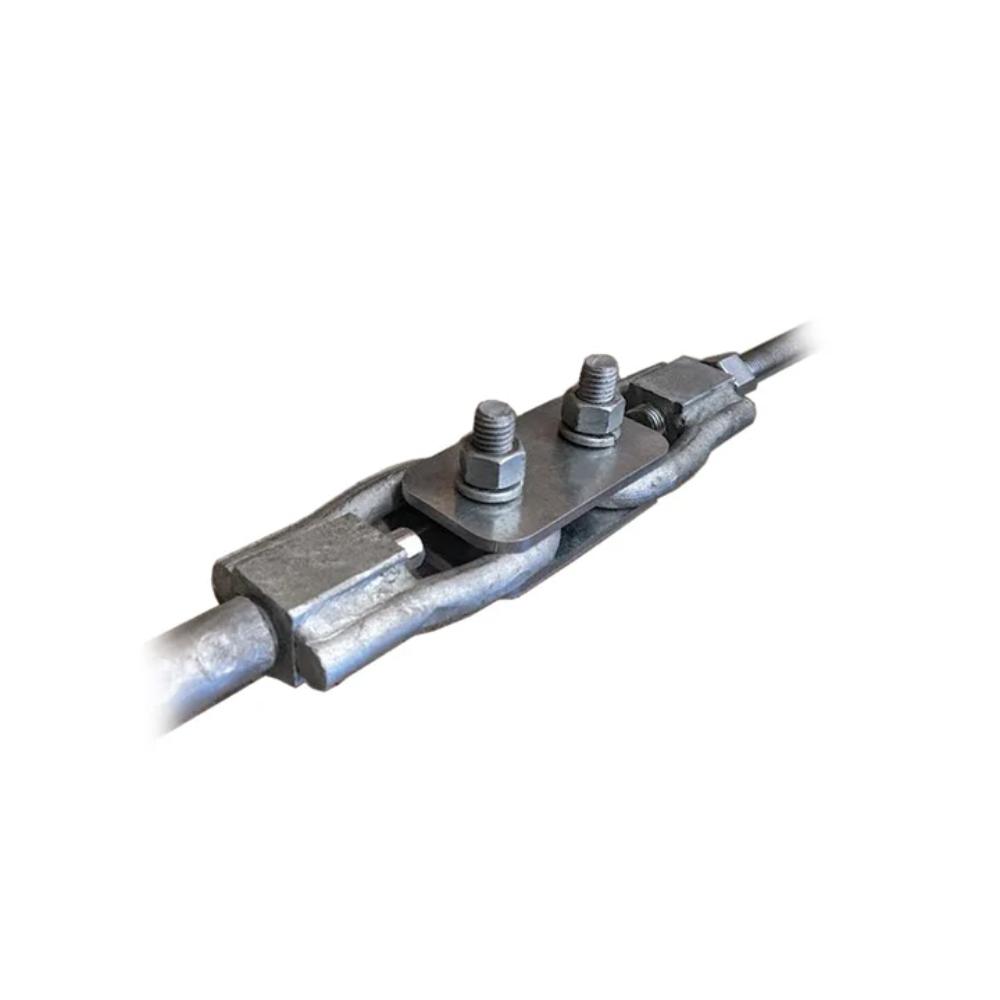

Each kit includes the major hardware components needed for installation, including anchor head, couplings, eye nuts, and auger anchor. Threaded rod is sold separately or selected based on project requirements.

Installation Guide:

• Click Here

Common Uses:

• Retaining wall stabilization
• Wall restraint applications
• Supplemental lateral support
• Structural anchoring in soil

Available Variants:

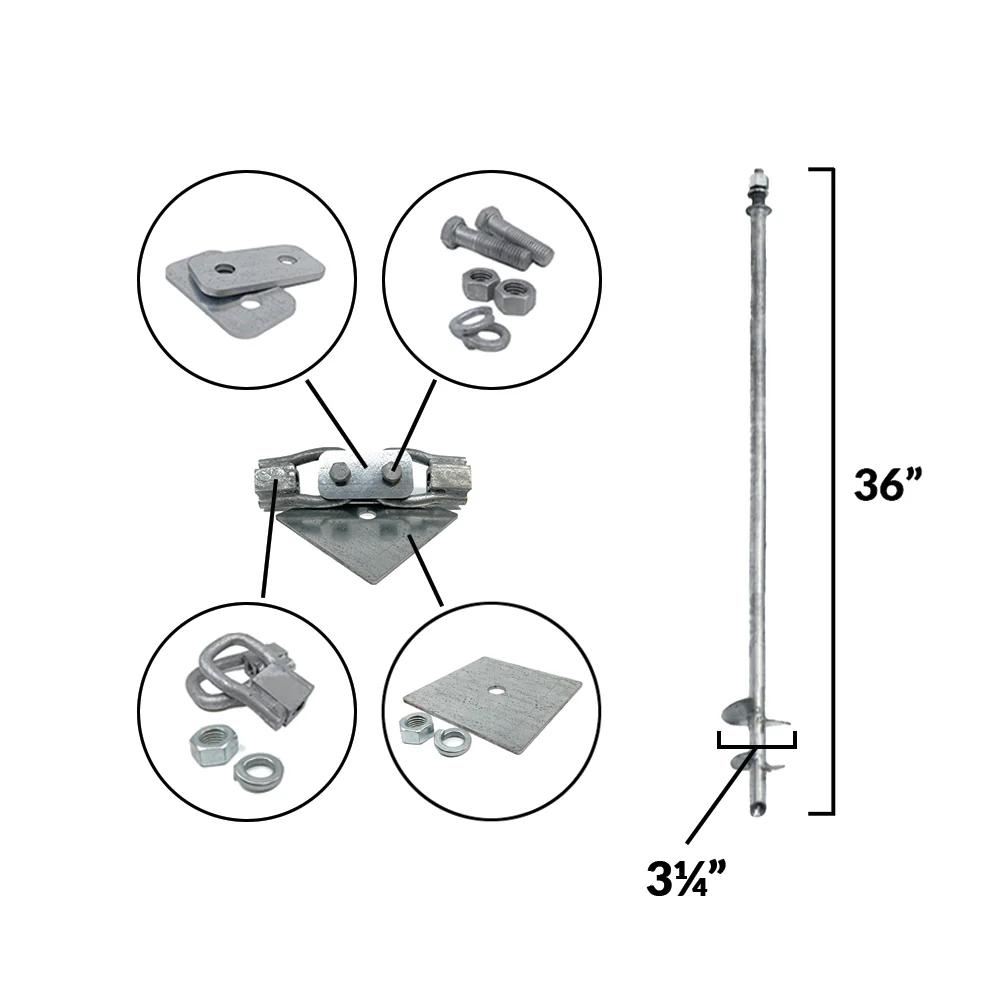

• 36" Auger / 3-1/4" Blade

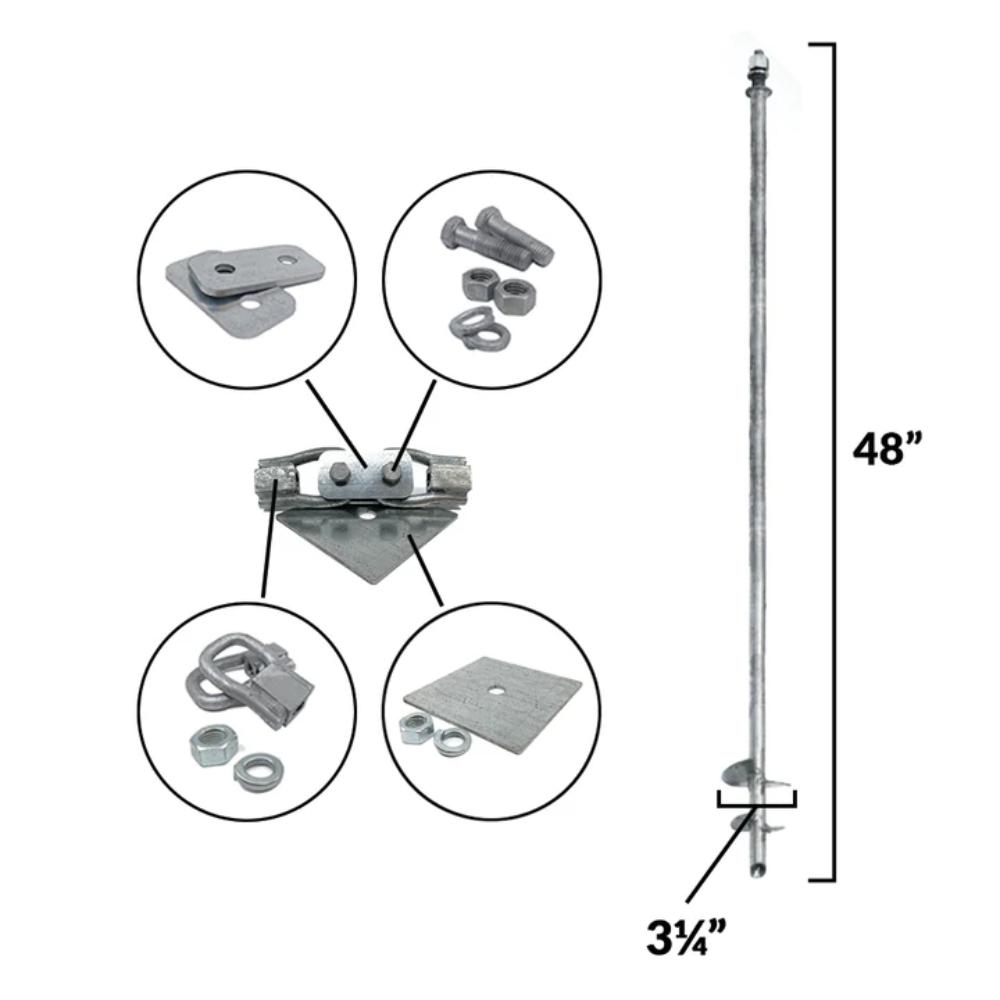

• 48" Auger / 3-1/4" Blade

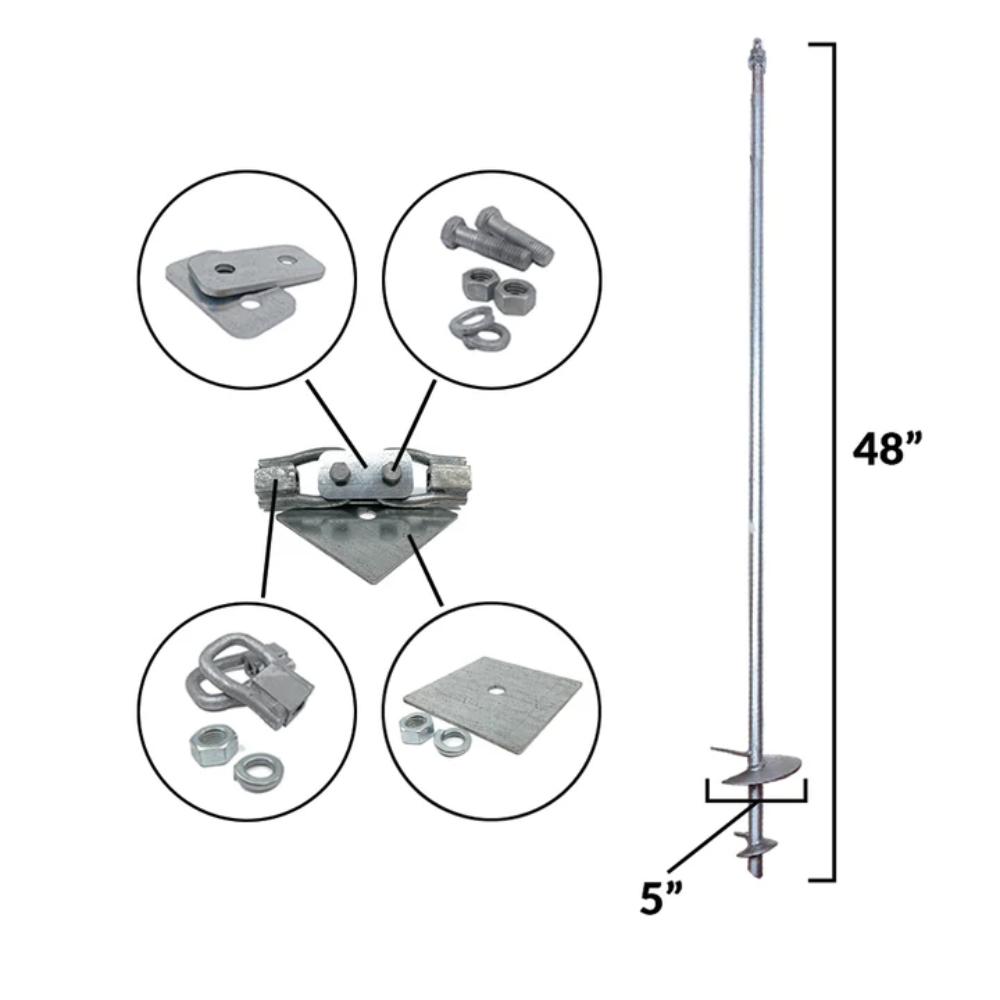

• 48" Auger / 5" Blade

Features:

• Heavy-duty steel components
• Multiple auger sizes available
• Designed for installation using standard tools
• Suitable for various soil anchoring conditions

Important:

Anchor size selection should be based on soil conditions, wall loading, and installation requirements. Installation guidance and kit contents are shown in the manufacturer installation documentation.
