Adjustable Post-to-Beam Bracing

A steel diagonal-brace system that adds lateral stability to qualifying decks, pole barns, pavilions, and carports.

Nolan Structural Products

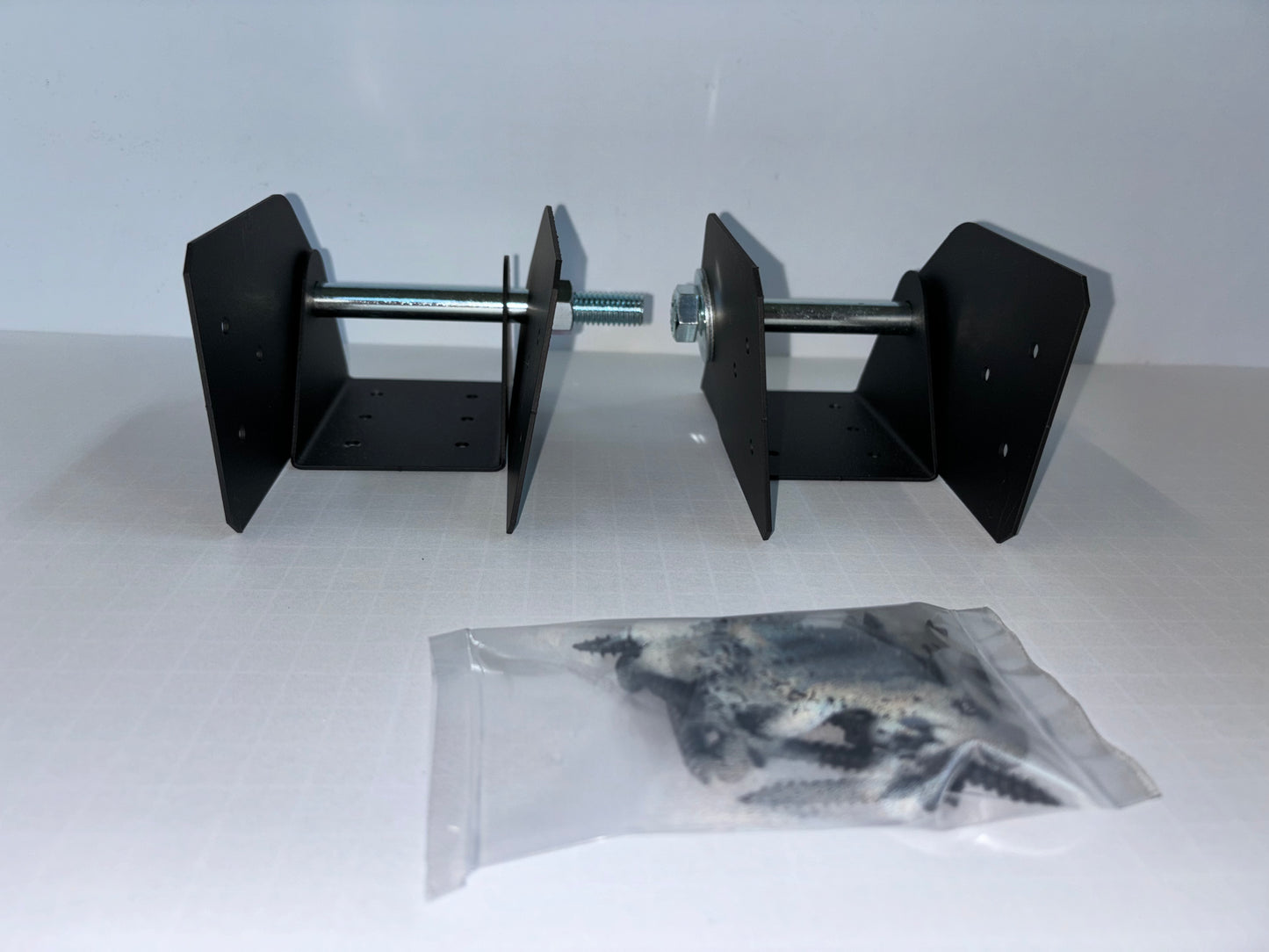

EZ Brace - Matte Black

EZ Brace - Matte Black

$ 1,461.00 MXN
$ 1,461.00 MXN
Sale Sold out
Taxes included. Shipping calculated at checkout.
Adjusts from 0–90° 1,000 lb load capacity All hardware included
View full details

Engineered structural solution

Adjustable Bracing for Posts and Beams

A 10-gauge steel brace system that adjusts from 0 to 90 degrees to add lateral stability to qualifying outdoor structures.

Application first

Confirm the Fit Before Ordering

Review the basic application and limits below. The current design report and installation instructions remain the technical source of truth.

01

Confirm framing

Verify the actual post and beam sizes and that sound framing is available for every fastener.

02

Set the angle

The adjustable connection supports brace angles from 0 to 90 degrees for practical field fit.

03

Choose the finish

Select galvanized or matte black to suit the structure and exposure.

Technical note: Product selection depends on existing conditions. If the application falls outside the published criteria, contact Nolan Structural Products before ordering.

How the system works

Structural Reinforcement with a Clear Purpose

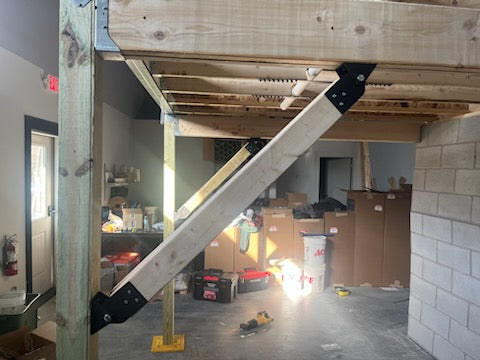

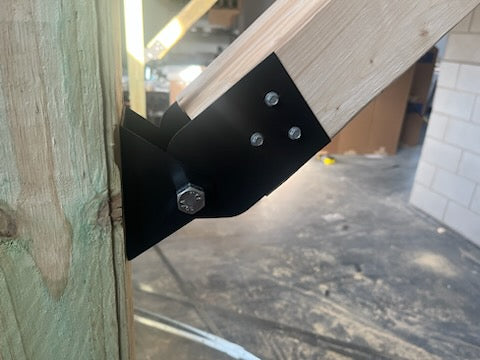

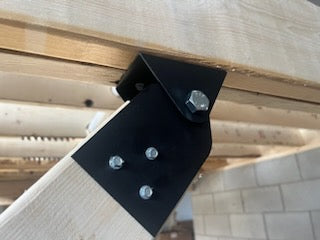

Paired steel brackets, plates, and through-bolts create an adjustable diagonal connection. Structural screws transfer brace forces into the post and beam framing.

What arrives: Use the product option and “What’s included” information in the purchase area to confirm the exact components and fasteners supplied with the selected configuration.

Key technical points

Specifications at a Glance

Adjustment
0–90°
Steel components
10 gauge
Load capacity
1,000 lb vertical or horizontal
Included hardware

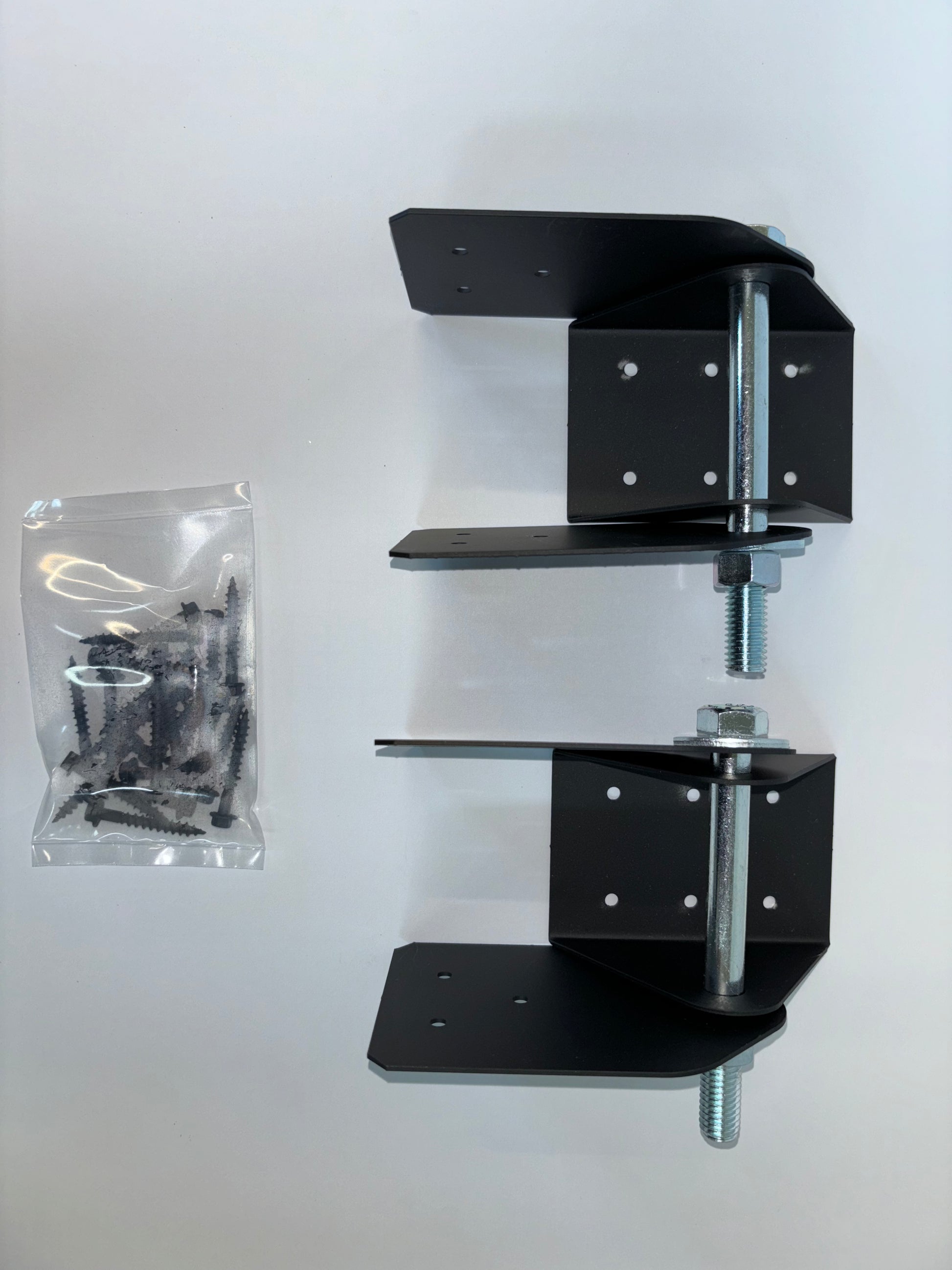

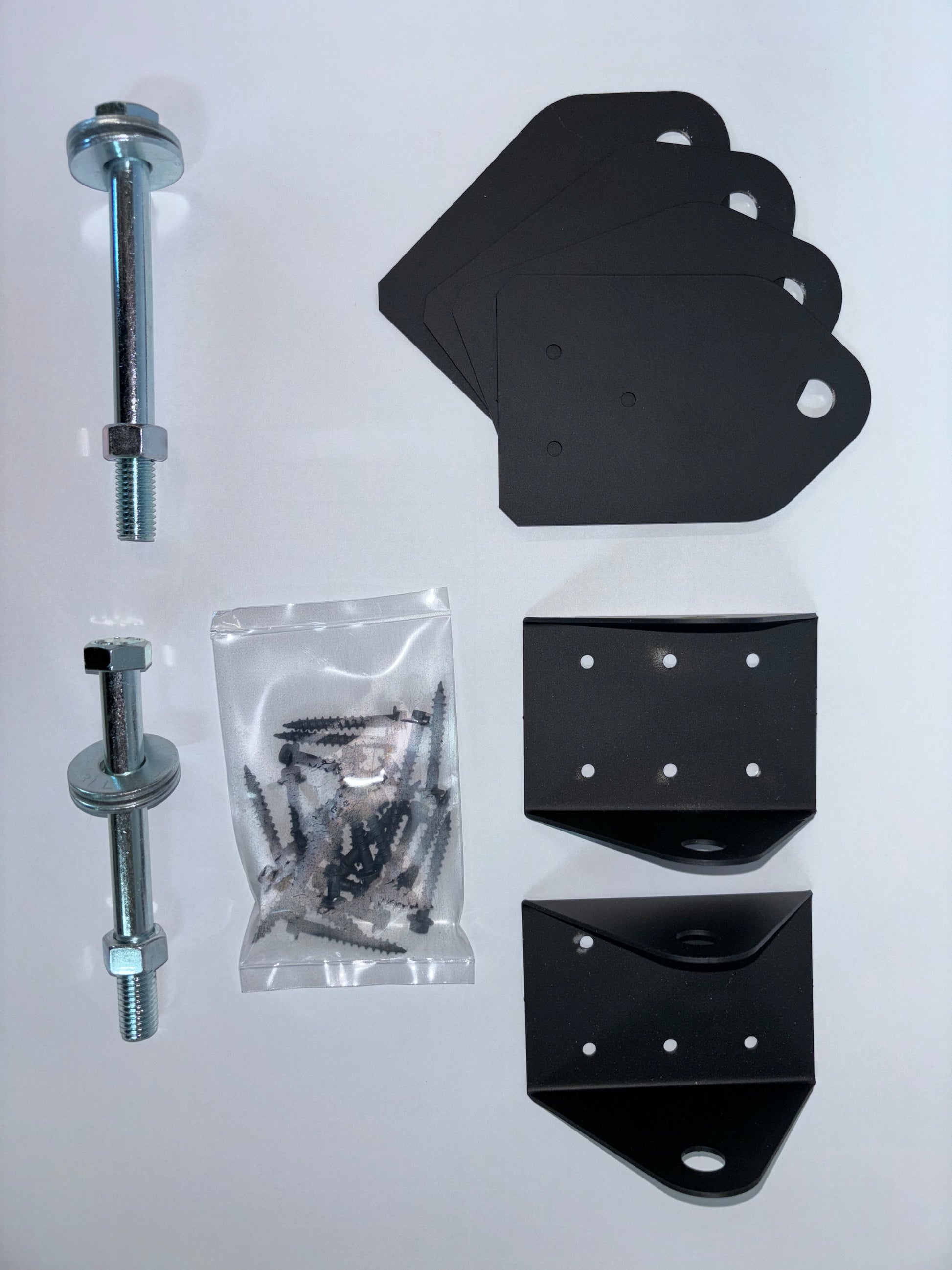

Brackets, plates, bolts, lock nuts, and screws

Clear next steps

From Measurement to Installation

1. Measure and document.

Record the member size, span or opening, accessible length, and relevant project conditions.

2. Select the correct configuration.

Use the product options and the applicable report, chart, or table.

3. Install to current instructions.

Follow the complete fastening and installation requirements supplied for the product.

Need help selecting?

Not Certain Which Configuration You Need?

Send the project dimensions and a few clear photos. We’ll help identify the right product or tell you when the published solution does not fit.

Contact Nolan Structural Products
