Adjustable diagonal bracing for lateral stability and structural reinforcement
Post-to-beam connections often require diagonal bracing to resist lateral forces from wind, snow, gravity, and impact loads. Without proper bracing, structures such as decks, pavilions, and pole buildings can experience excessive movement, racking, or long-term instability.
EZ Brace is designed to provide a simple, adjustable solution for adding diagonal structural support where post-to-beam bracing is required.
Lateral loads act on structures from multiple directions and can place significant stress on post-to-beam connections. Traditional diagonal bracing methods often require precise angle cuts and field adjustments, which can be time-consuming and difficult to execute consistently.
EZ Brace simplifies this process by allowing diagonal supports to be installed at any angle between 0° and 90°, ensuring proper load transfer without complex layout or cutting.

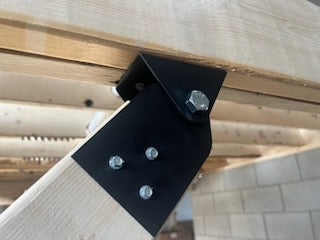

EZ Brace installs at post-to-beam connections to create a rigid diagonal load path that improves overall structural stability. The system accommodates a wide range of framing sizes and allows diagonal wood braces to be cut straight rather than angled to match the post.
Sold as a complete kit, EZ Brace provides all required steel components and fasteners to ensure consistent, repeatable installation in the field.
EZ Brace is designed to function as a structural bracing component, providing resistance to both vertical and lateral loads when installed as specified. It is commonly used in residential and light commercial applications where reliable diagonal reinforcement is required.

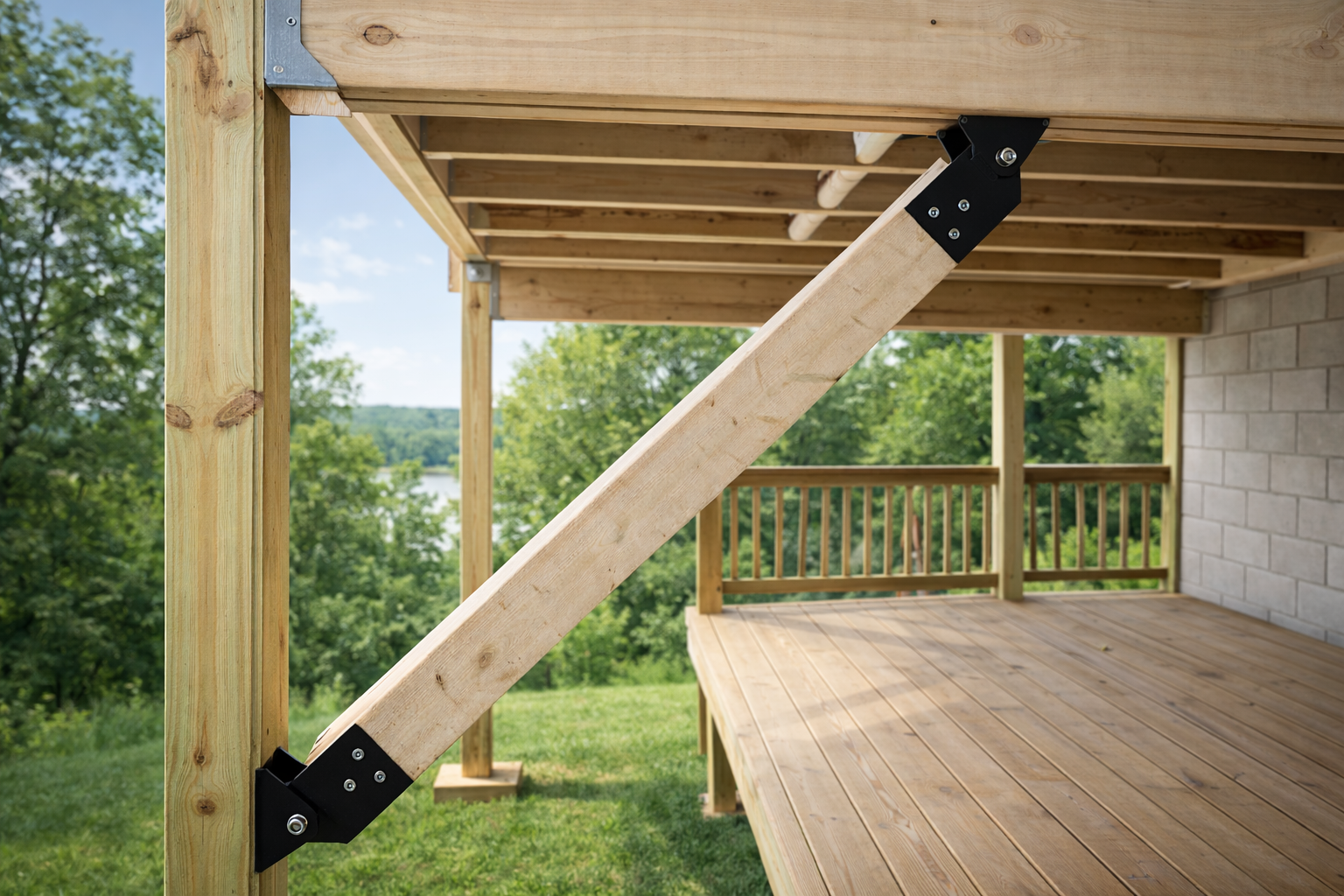

Typical applications include decks, pole barns, pavilions, carports, and similar post-framed structures.
EZ Brace offers a practical, engineered approach to diagonal bracing that supports code-appropriate construction practices while reducing installation time and field complexity.
If you are unsure whether EZ Brace is appropriate for your framing condition or application, our team can help review your layout and guide you toward the correct solution.
Adjustable structural bracing

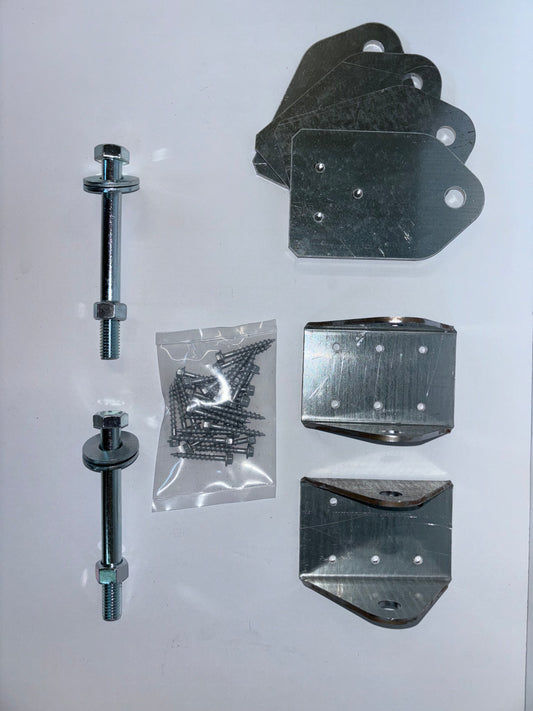

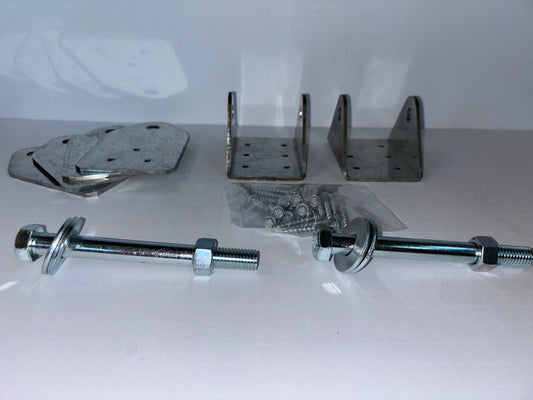

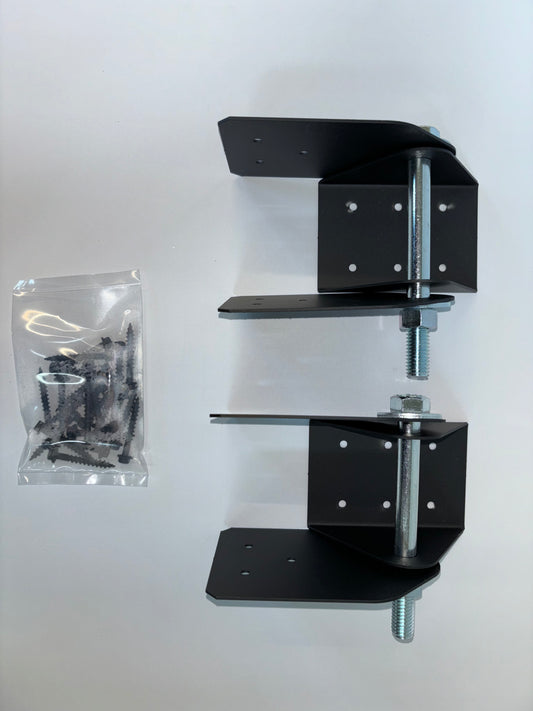

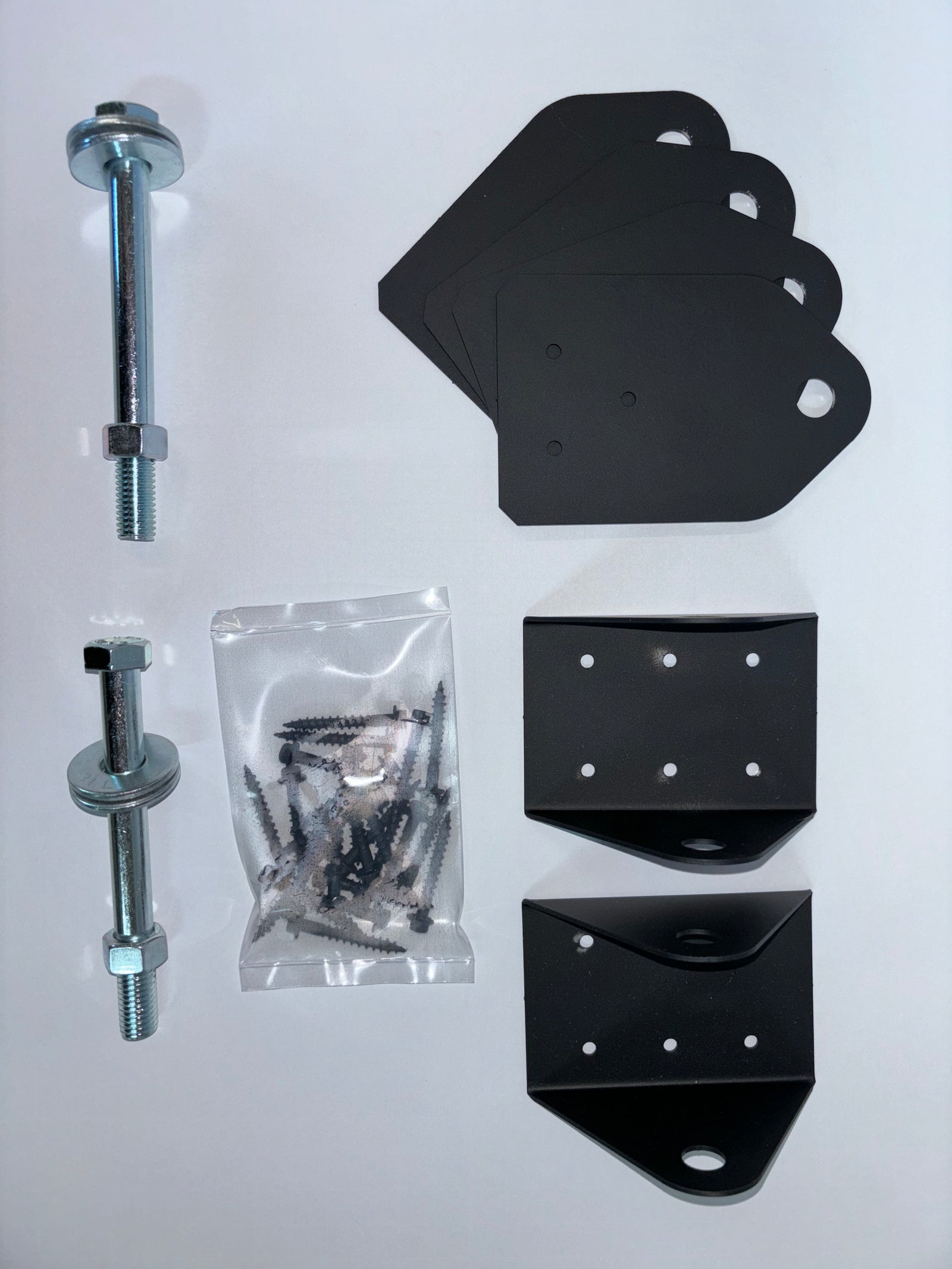

Choose the galvanized or matte-black finish, then confirm the post, beam, angle, and project conditions. Each kit includes its brackets, plates, bolts, lock nuts, and structural screws.
Engineered structural solution
A 10-gauge steel brace system that adjusts from 0 to 90 degrees to add lateral stability to qualifying outdoor structures.
Application first
Review the basic application and limits below. The current design report and installation instructions remain the technical source of truth.
Verify the actual post and beam sizes and that sound framing is available for every fastener.
The adjustable connection supports brace angles from 0 to 90 degrees for practical field fit.
Select galvanized or matte black to suit the structure and exposure.
How the system works
Paired steel brackets, plates, and through-bolts create an adjustable diagonal connection. Structural screws transfer brace forces into the post and beam framing.
Key technical points
Clear next steps
Record the member size, span or opening, accessible length, and relevant project conditions.
Use the product options and the applicable report, chart, or table.
Follow the complete fastening and installation requirements supplied for the product.
Need help selecting?
Send the project dimensions and a few clear photos. We’ll help identify the right product or tell you when the published solution does not fit.
