Insta-Footing - 12x12" Plate

For the Design Report for this product, please Click Here.

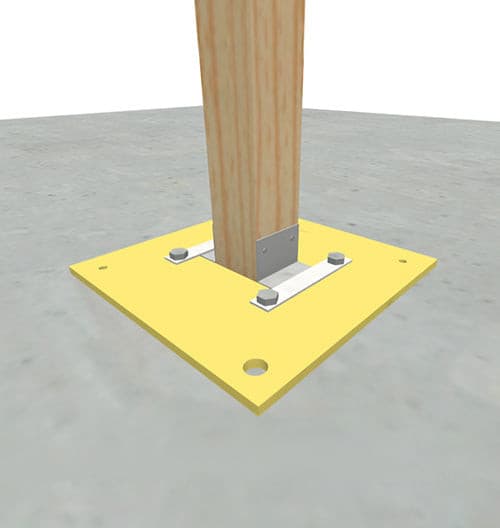

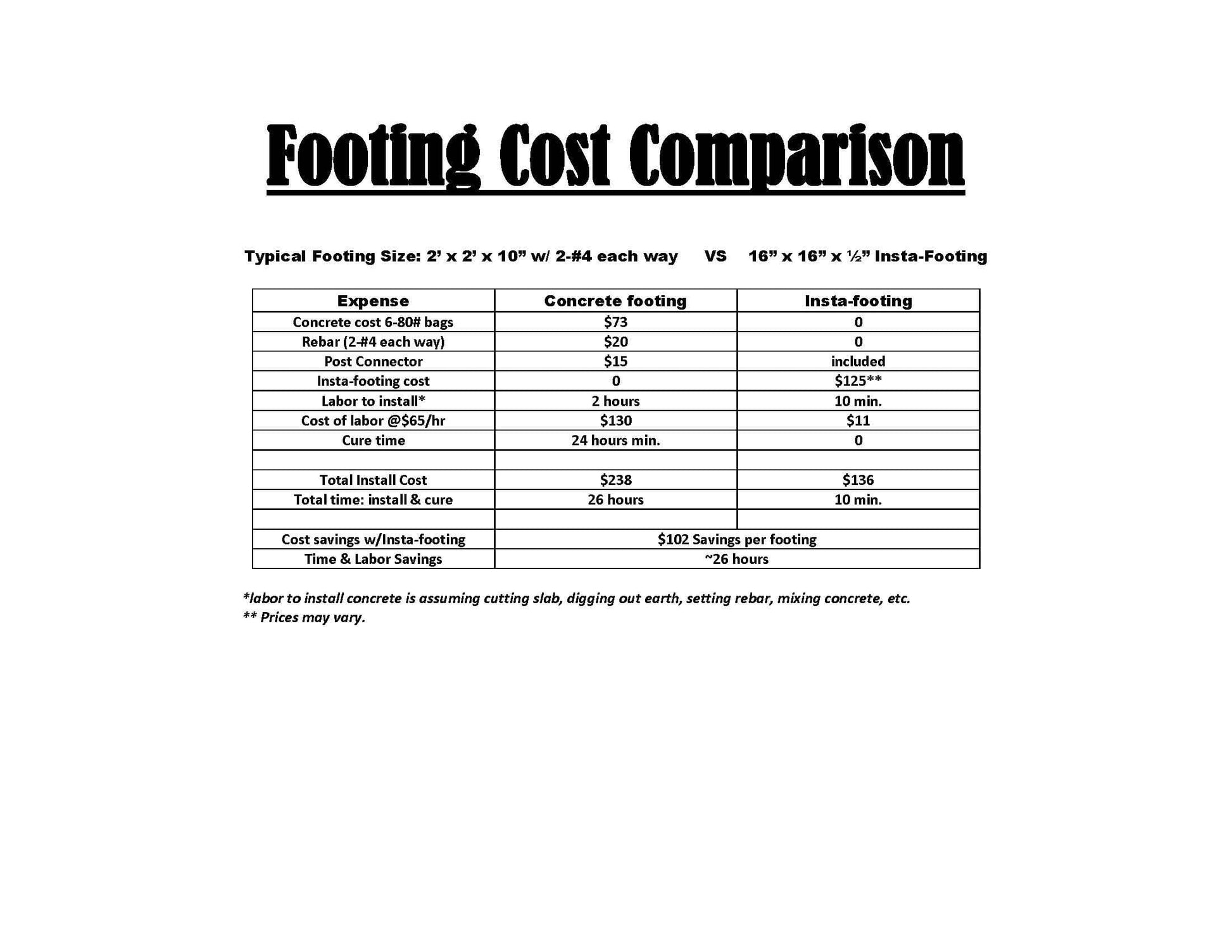

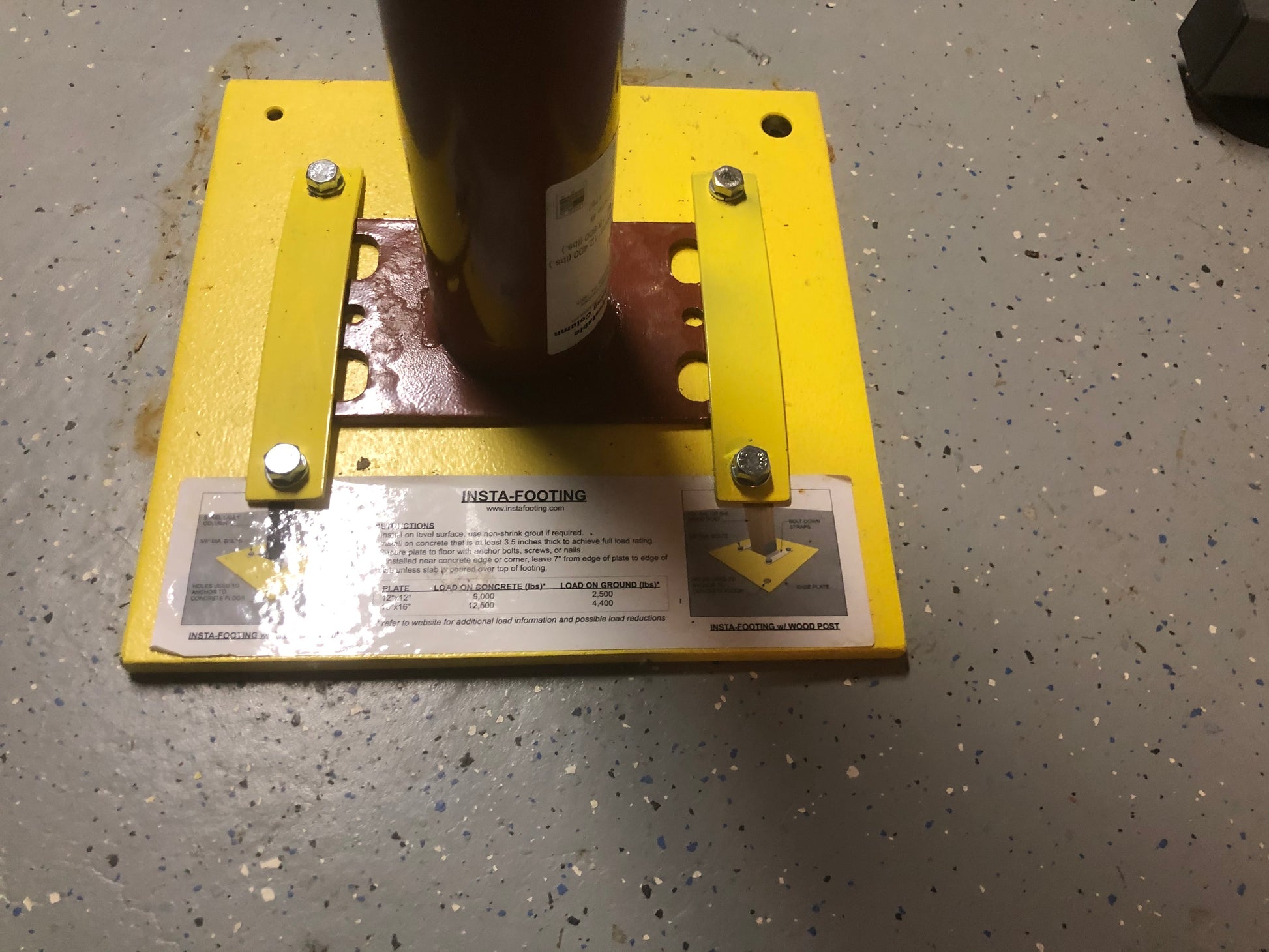

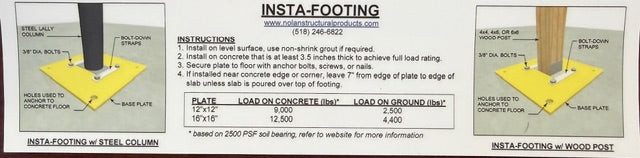

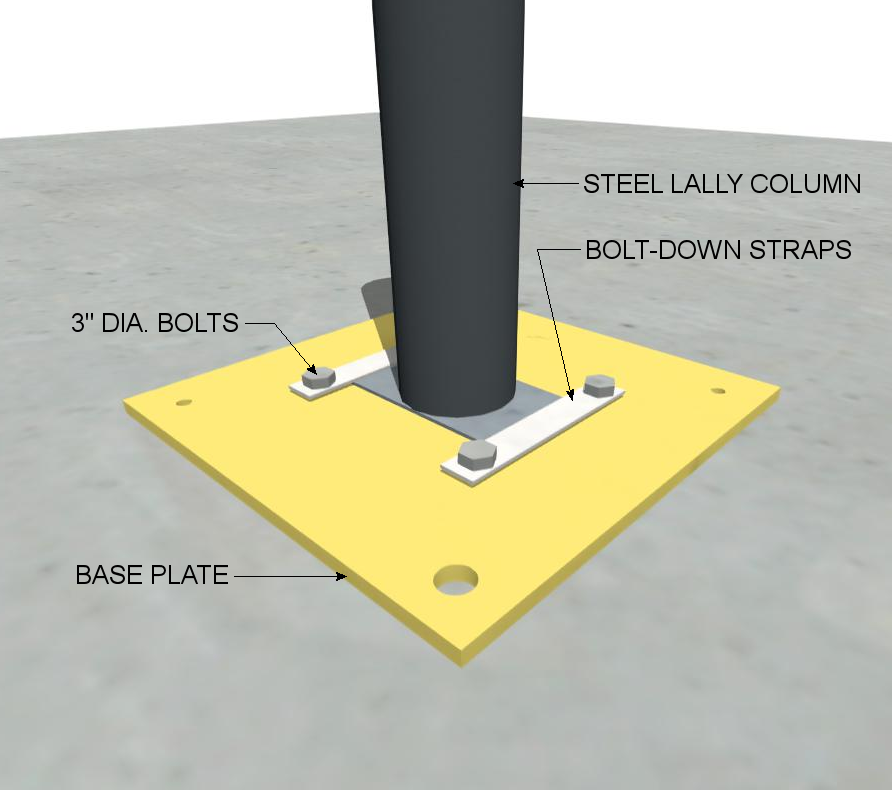

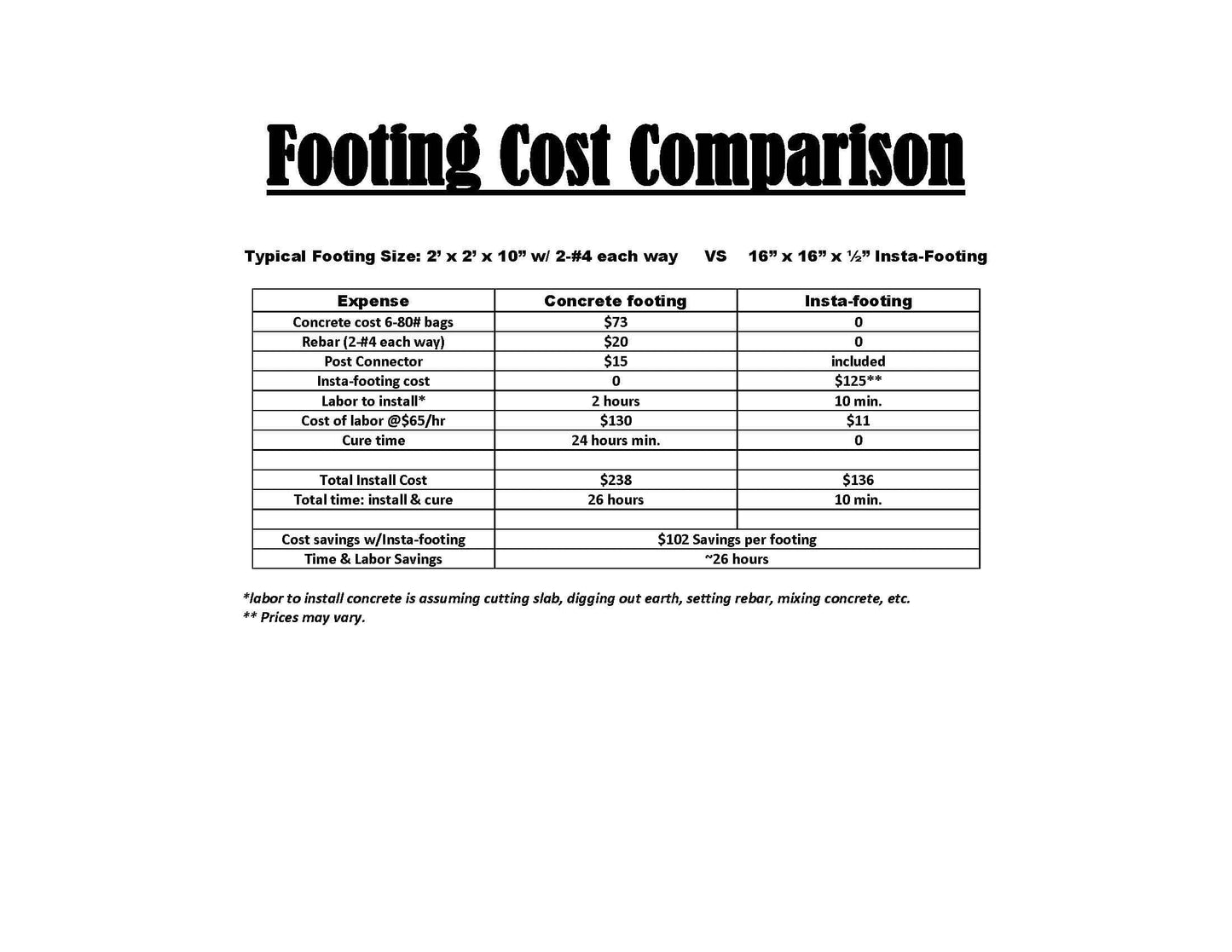

Insta-Footing is an affordable alternative to a poured concrete footing, saving significant time and money. The Insta-Footing is placed on top of a poured concrete floor slab that is at least 3.5 inches thick. The slab may be required to be leveled with non-shrink grout, if existing conditions warrant. The Insta-Footing is secured to the floor with either two 1/2″ diameter concrete expansion anchor bolts, two concrete screws, or power-driven nails.  An Insta-Footing can support a 4×4, 4×6, 6×6 or steel post. Plates are painted yellow steel. The size of the plate is dependent on the load to be supported.
