How to Determine Basement Wall Strap Spacing
Share
Basement wall strap spacing is selected by matching three project conditions: wall height, maximum backfill height, and verified soil class. Use those inputs with Nolan Structural Products’ Basement Wall Strap documents to find the maximum permitted spacing for a qualifying concrete-block foundation wall.
- Basement wall strap spacing depends on wall height, maximum backfill height, and verified soil class.
- A table value is the maximum spacing, not a universal spacing recommendation.
- For an 8-foot wall, greater backfill or higher soil pressure requires closer spacing.
- Confirm that the concrete-block wall otherwise qualifies before selecting spacing.
The three inputs used to select spacing
You need three verified inputs before reading the maximum spacing table:
- Wall height: Use the actual height of the concrete-block foundation wall.
- Maximum backfill height: Measure the greatest exterior soil height acting against the wall. Do not substitute the interior exposed-wall height.
- Soil class: Use the soil class established for the project. Do not choose a class from appearance alone.
Each table value applies only to its matching combination of wall height, backfill height, and soil class. Changing any one of those inputs can change the permitted spacing.
What maximum spacing means
The table gives the maximum permitted distance between straps for the selected conditions. Installed straps may be closer together, but they must not be farther apart than the applicable table value.
For example, a table value of 16 inches does not mean that 16 inches is correct for every wall. It means 16 inches is the maximum for that specific wall-height, backfill-height, and soil-class combination.

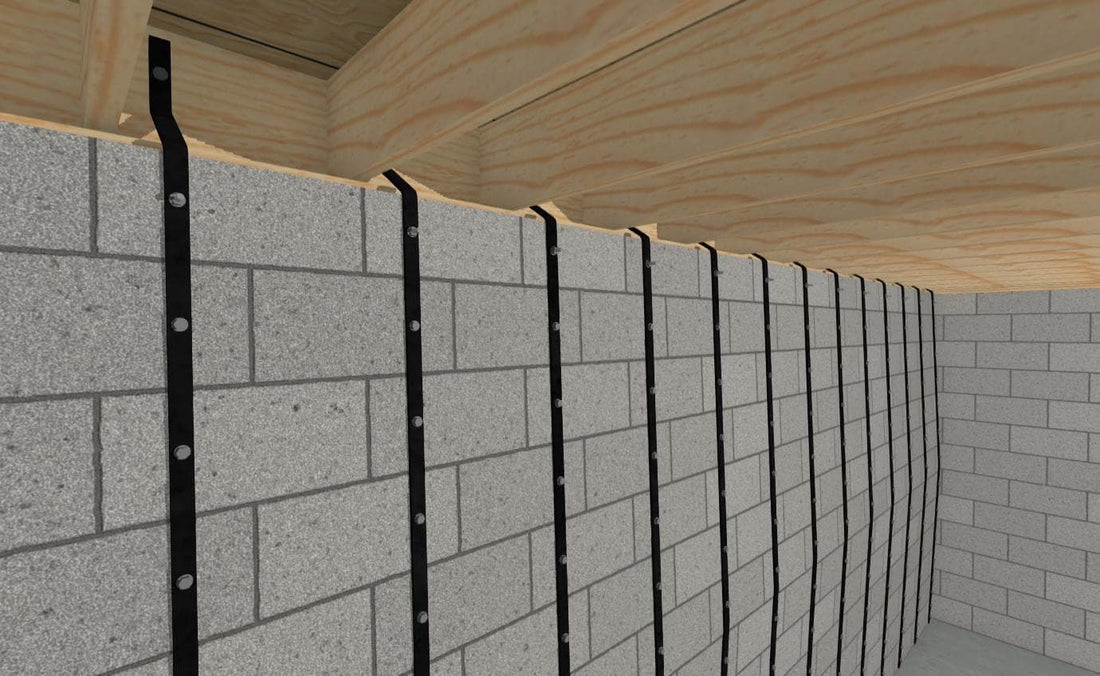

Nolan Basement Wall Straps are designed to resist additional inward movement on qualifying concrete-block foundation walls. Spacing selection does not determine whether a damaged wall qualifies for the system.
How to read the spacing table
- Confirm the wall is concrete-block construction and otherwise fits the product criteria.
- Find the row for the verified wall height.
- Within that row, use the verified maximum backfill height.
- Read across to the verified soil class.
- Treat the resulting number as the maximum spacing in inches.
Do not select spacing from wall length, crack width, bow severity, or a general rule of thumb. Those items do not replace the three table inputs.
Spacing examples for an 8-foot wall
The following examples apply only to an 8-foot wall and the stated backfill and soil conditions.
| Maximum backfill height | Class I soil | Class II soil | Class III soil |
|---|---|---|---|
| 6 feet | 48 inches maximum | 24 inches maximum | 16 inches maximum |
| 8 feet | 24 inches maximum | 16 inches maximum | 8 inches maximum |
For an 8-foot wall with 6 feet of backfill, the maximum spacing decreases from 48 inches in Class I soil to 16 inches in Class III soil. For an 8-foot wall with 8 feet of backfill, it decreases from 24 inches to 8 inches across the same soil classes.
These examples show why there is no universal Basement Wall Strap spacing. The same wall height produces different results when backfill height or soil class changes.
Verify soil class before choosing spacing
Soil class directly affects the lateral pressure used to determine maximum spacing. If the soil class has not been established for the project, do not guess and do not select a spacing value from the table.
Obtain the soil classification from reliable project information or a qualified design professional. A spacing selected with the wrong soil class may not match the wall’s design conditions.
Confirm the wall otherwise qualifies
The spacing table is not a wall-qualification checklist. Before laying out straps, confirm the wall material, condition, deflection, fastening locations, and other project conditions against Nolan’s current criteria. The separate guide on whether a bowed concrete-block wall qualifies covers that screening step without duplicating it here.
Conditions outside the published criteria require review by Nolan Structural Products or a qualified design professional.
Use the current documents together
Use the Basement Wall Strap design report to understand the design basis and the spacing table to select the maximum spacing for verified project inputs. After spacing is established, follow the current installation instructions for layout, fastening, and installation requirements.
FAQ
What determines Basement Wall Strap spacing?
Wall height, maximum backfill height, and verified soil class determine the maximum spacing shown in Nolan’s table.
Is Basement Wall Strap spacing always 16 inches?
No. Sixteen inches applies only to specific combinations in the table, not every wall.
What is the maximum spacing for an 8-foot wall with 6 feet of backfill?
The maximum is 48 inches for Class I soil, 24 inches for Class II soil, and 16 inches for Class III soil.
What is the maximum spacing for an 8-foot wall with 8 feet of backfill?
The maximum is 24 inches for Class I soil, 16 inches for Class II soil, and 8 inches for Class III soil.
Can I estimate soil class from how the soil looks?
No. Use a verified soil classification for the project rather than selecting a class by appearance.
Does choosing a spacing confirm that the wall qualifies?
No. The wall must separately meet Nolan’s current product and installation criteria before the spacing table is applied.
One last thing
Select spacing only after all three inputs are verified. If wall height, maximum backfill height, or soil class is uncertain, the table cannot produce a reliable project value.
