Nolan Structural Products

Basement Wall Strap

Basement Wall Strap

4 total reviews

Regular price $99.00 USD
Regular price Sale price $99.00 USD
Sale Sold out
Shipping calculated at checkout.

***USE DISCOUNT CODE BWSTRAP5 IF PURCHASING 10-19 STRAPS FOR 5% OFF PURCHASE.  AUTOMATIC DISCOUNT OF 10% APPLIED WHEN PURCHASING 20 OR MORE STRAPS***

Click here for the product design report provided by Nolan Engineering, PLLC.

Click here for PDF of Maximum Spacing Table

Click here for Installation Instructions

Click here to watch our installation instruction video on YouTube

Click here to watch the full video which outlines the benefits, uses, and installation

Quantity: 1 Strap per Kit

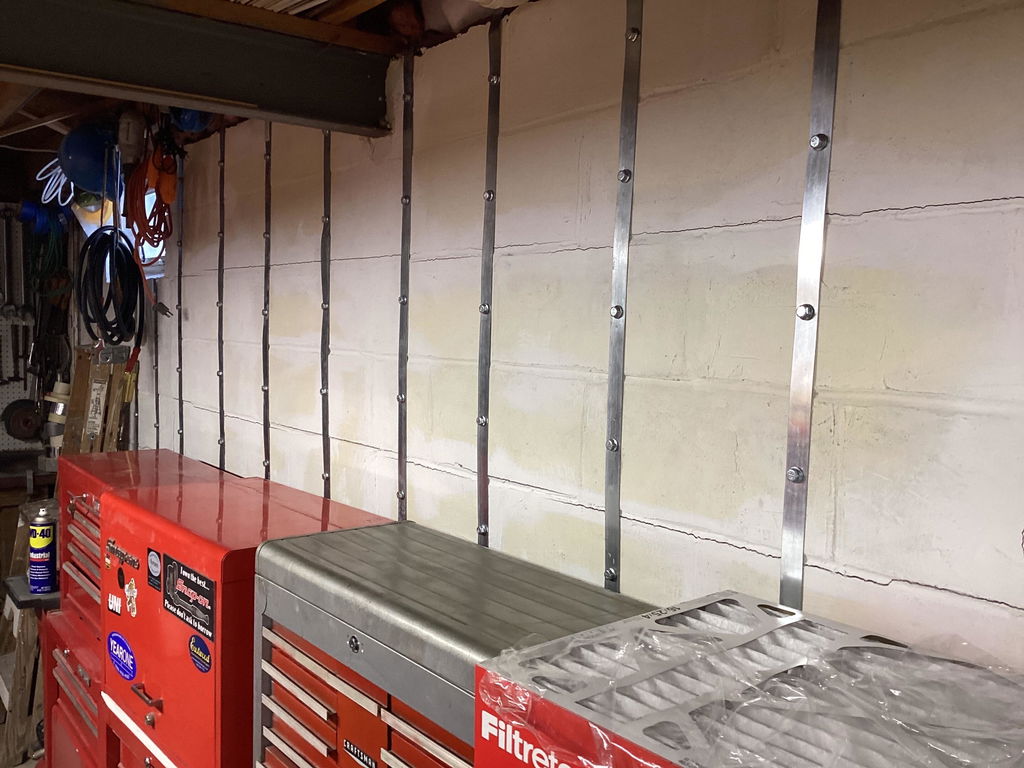

The Basement Wall Strap system is intended to permanently repair a cracked and/or inward bowed foundation wall and to prevent the wall from tipping in at the top. The straps will not remove the crack or bow in the foundation wall but permanently prevent the wall from bowing in any further or collapsing. The straps act as steel reinforcement on the interior face of the wall. Once the stretch-resistant straps are applied, the wall will be prevented from bowing any further. The straps are secured to the wall at the top and bottom using 3/8” diameter concrete expansion anchors. The top of the straps is anchored to the sill plate using two ¼” diameter x 1.5” long structural screws.

Our product is designed for foundation walls that are up to 8’ tall with a backfill height of 8’ (earth should be even with top of exterior side of wall) for up to class III soils (60 PSF lateral load); class III soils are usually the worst soils encountered. The straps should be installed so that they are spaced at 16” on center. If walls are less than 8’, the bottom excess length of the strap can be trimmed off.

The straps are galvanized steel, 1.25” wide, 0.031” thick and 8’-6” long and come pre-drilled with the holes. The product comes complete will all of the bolting hardware, and masonry drill bit. The hardware is also galvanized steel.



View full details

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Edwin Rivera
Homeowner

It was easy to install the wall strap took me about 5 minutes each one. Must have a good hammer drill and impact gun will make it go smoother. So far I’m happy with the product

M
Michael DiPasquale
Basement wall straps

Order came quickly. Install was fast & easy. Had to use them for a bowed wall in a house I was selling. Structural engineer signed off on it. The straps worked like a charm. Took about 4 hours total including set up & clean up to install 10 straps solo. The included mason bits ate up the block too. I had a big Bosch hammer drill but never needed it as my 20v dewalt drill worked perfectly. Had the impact gun for the bolts and the job was fairly easy. Much easier & cheaper than carbon fiber or block pins. I highly recommend these straps. Everything you need comes with it.

F
Fred Jefferson
Cost effective alternative!

Quoted an arm and a leg for same feature functionality by another company. I am pleased with the product and related costs. Friendly staff/ fast shipping!

K
Kevin Leboeuf
Great Product!!!

These straps were very easy to install with minimal prep work. the amount of money I was able to save compared to a basement company installing carbon fiber straps was substantial. I would definitely recommend to anyone considering strapping apposed to a full wall replacement or alternative options.
