EZ Brace Adjustable Diagonal Brace Connector Guide
Share
An adjustable diagonal brace connector solves a specific framing problem: connecting a wood brace between a post and beam when the joint angle varies from one project to the next. EZ Brace provides an adjustable steel connection for decks, pole barns, pavilions, and carports while allowing the diagonal brace ends to remain straight-cut.
- EZ Brace adjusts from 0 to 90 degrees for wood post-to-beam bracing.
- Straight-cut brace ends eliminate the need to match each connection angle with an angled cut.
- Compatible lumber examples include 4x4, 6x6, 4x6, 2x4, paired 2x4, 2x6, and paired 2x6.
- Each kit supplies the brackets and hardware for one diagonal brace.
- Choose galvanized or matte black based only on the preferred color.
Why choose an adjustable diagonal brace connector
Fixed-angle hardware only fits the angle it was made for. EZ Brace adjusts from 0 to 90 degrees, allowing the connector to follow the required diagonal brace angle at the post-to-beam joint.
That adjustment also simplifies brace preparation. The wood brace can be cut straight at both ends instead of being cut to match two connection angles. This is useful where field dimensions vary or several braces must be fitted across the same structure.
EZ Brace is for wood post-to-beam bracing, not foundation-wall reinforcement.
Applications
EZ Brace is intended for diagonal wood bracing on:
- Decks
- Pole barns
- Pavilions

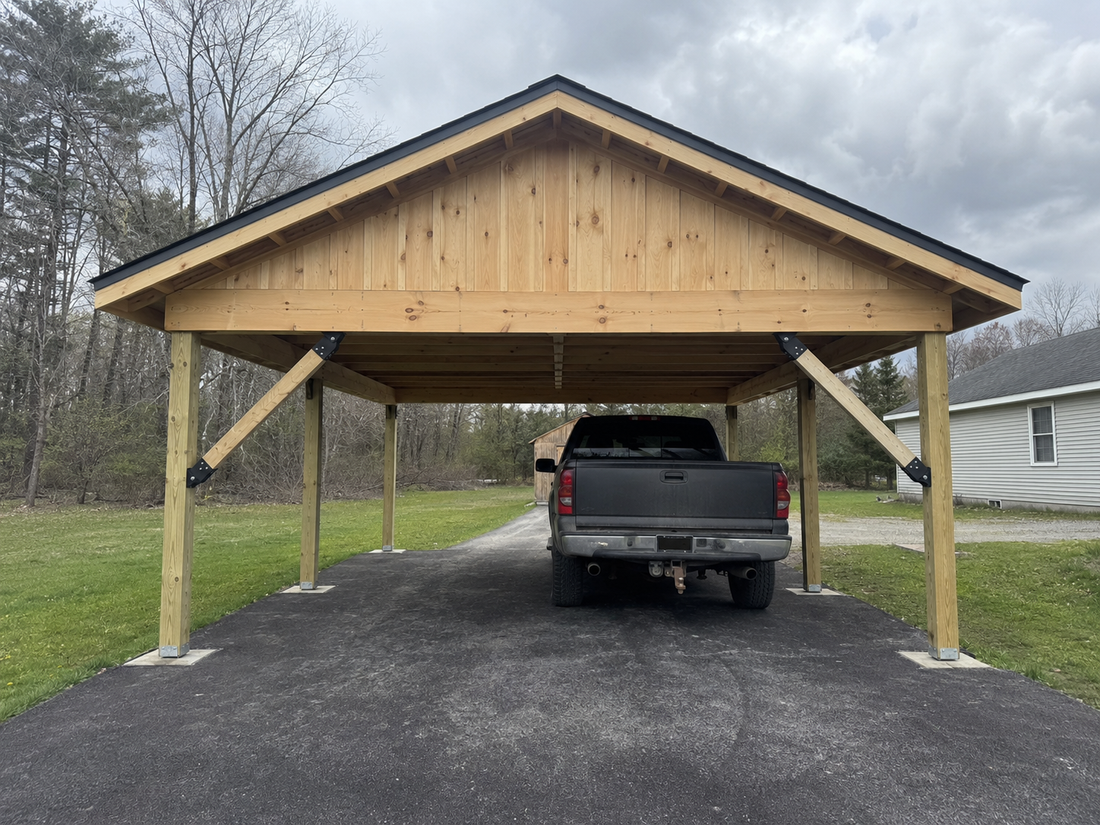

- Carports
The connector adds lateral stability at post-to-beam framing connections subject to wind, snow, gravity, and impact loads. The post, beam, brace, connectors, and supporting structure still form one load path, so every framing member must suit the project.
Adjustment range and straight-cut brace benefit
The steel brackets adjust through a 0-to-90-degree range. This allows the diagonal brace to meet the post and beam at the required angle without a fixed-angle connector dictating the geometry.
The adjustable brackets allow the brace ends to be cut straight, eliminating the need to match the post-and-beam angles. This is the practical benefit when field dimensions vary or several braces must be fitted across the same structure.
The adjustment range does not establish a required brace angle, brace length, or connector spacing. Those dimensions depend on the structure and its design.
Compatible lumber examples
EZ Brace can be used with these wood-member configurations:
- 4x4
- 6x6
- 4x6
- 2x4
- Two 2x4 members
- 2x6
- Two 2x6 members
These are compatibility examples for the connector and diagonal brace arrangement. Select lumber based on the actual framing layout and required structural performance, not only on whether it fits inside the bracket assembly.
Listed load capacity
EZ Brace has a listed 1,000 lb vertical or horizontal load capacity. The capacity of the complete structure also depends on the wood brace, post, beam, connections, and supporting structure.
Choose the finish
Both finish options have the same design, dimensions, components, hardware, adjustment range, compatible lumber applications, and load capacity. The only difference is the galvanized or matte-black color/finish.
Galvanized EZ Brace
The galvanized EZ Brace is the standard galvanized option. One kit includes:
- Two U-shaped 10-gauge steel brackets
- Four flat 10-gauge steel plates
- Two 5-inch × 1/2-inch bolts
- Two 1/2-inch lock nuts
- Twenty-four Simpson No. 9 × 1-1/2-inch screws
Choose galvanized when the silver galvanized finish suits the structure and surrounding hardware.
Matte Black EZ Brace
The matte-black EZ Brace is the same EZ Brace kit in a matte-black finish. One kit includes:
- Two U-shaped 10-gauge steel brackets
- Four flat 10-gauge steel plates
- Two 5-inch × 1/2-inch bolts
- Two 1/2-inch lock nuts
- Twenty-four Simpson No. 9 × 1-1/2-inch screws
Choose matte black when the connector will remain visible and a dark finish better matches the posts, beams, or other exposed hardware.
Keep each kit together
One EZ Brace kit supplies the brackets, plates, bolts, nuts, and screws for one diagonal brace. A complete brace uses the matched connector components at both ends.
The galvanized and matte-black kits use the same components and hardware. Keep all supplied parts together so each kit provides one complete diagonal brace connection.
What to confirm before ordering
Application
Confirm that the project uses a diagonal wood brace between a post and beam on a deck, pole barn, pavilion, carport, or comparable post-and-beam structure.
Lumber configuration
Check the actual post, beam, and brace dimensions. The compatible examples cover solid 4x and 6x members as well as single or paired 2x members, but the complete framing design determines which configuration is appropriate.
Connection angle
Verify that the joint geometry falls within the 0-to-90-degree adjustment range. EZ Brace accommodates the angle; it does not specify which angle the project requires.
Finish
Choose galvanized or matte black based on the preferred color/finish. The design, dimensions, components, hardware, adjustment range, compatible lumber applications, and load capacity are identical.
Quantity
Count one complete kit for each diagonal brace. A framing bay with more than one diagonal brace requires a separate kit for each brace.
Structural requirements
Confirm the required loads and framing details for the project. EZ Brace carries a listed 1,000 lb vertical or horizontal capacity, but the connector rating does not establish the capacity of the post, beam, brace, or supporting structure.
Galvanized vs matte black at a glance
| Detail | Galvanized EZ Brace | Matte-Black EZ Brace |
|---|---|---|
| Function | Adjustable diagonal brace connector | Adjustable diagonal brace connector |
| Adjustment | 0 to 90 degrees | 0 to 90 degrees |
| Listed capacity | 1,000 lb vertical or horizontal | 1,000 lb vertical or horizontal |
| U-shaped brackets | Two, 10-gauge steel | Two, 10-gauge steel |
| Flat plates | Four, 10-gauge steel | Four, 10-gauge steel |
| Bolts | Two, 5-inch × 1/2-inch | Two, 5-inch × 1/2-inch |
| Nuts | Two 1/2-inch lock nuts | Two 1/2-inch lock nuts |
| Screws | Twenty-four Simpson No. 9 × 1-1/2-inch | Twenty-four Simpson No. 9 × 1-1/2-inch |
| Color/finish | Galvanized | Matte black |
| Diagonal brace connections per kit | One | One |
Common selection mistakes
Ordering one kit for two braces
One kit supplies one diagonal brace. Count the required diagonal braces before ordering and match one complete kit to each brace.
FAQ
What is an adjustable diagonal brace connector?
It connects a diagonal wood brace between a post and beam while accommodating different joint angles. EZ Brace adjusts from 0 to 90 degrees.
Do EZ Brace wood braces need angled end cuts?
No. The adjustable brackets allow the diagonal wood brace ends to be cut straight rather than matched to the post and beam angles.
What lumber sizes work with EZ Brace?
Compatible examples include 4x4, 6x6, 4x6, 2x4, paired 2x4, 2x6, and paired 2x6 configurations.
What is the EZ Brace load capacity?
EZ Brace has a listed 1,000 lb vertical or horizontal load capacity. The capacity of the complete structure also depends on the framing members, connections, and supporting structure.
How many diagonal braces does one kit supply?
One kit supplies the brackets and connecting hardware for one diagonal brace.
What is the difference between galvanized and matte-black EZ Brace?
They are identical in design, dimensions, components, hardware, adjustment range, compatible lumber applications, and load capacity. The only difference is the galvanized or matte-black color/finish.
Where is EZ Brace commonly used?
Common applications include decks, pole barns, pavilions, and carports with diagonal wood bracing at post-to-beam connections.
Does EZ Brace determine the required brace length or spacing?
No. EZ Brace provides the adjustable connection, while brace length, angle, quantity, and spacing come from the project design.
One last thing
Choose EZ Brace for the connection problem it solves: fitting a straight-cut diagonal wood brace between a post and beam across a wide range of angles. Select the finish, verify the lumber configuration, and order one complete kit for every diagonal brace.
